CSM Misc
I receive no compensation for any supplier listed on this page or any of these website pages linked to my website.
CAMS

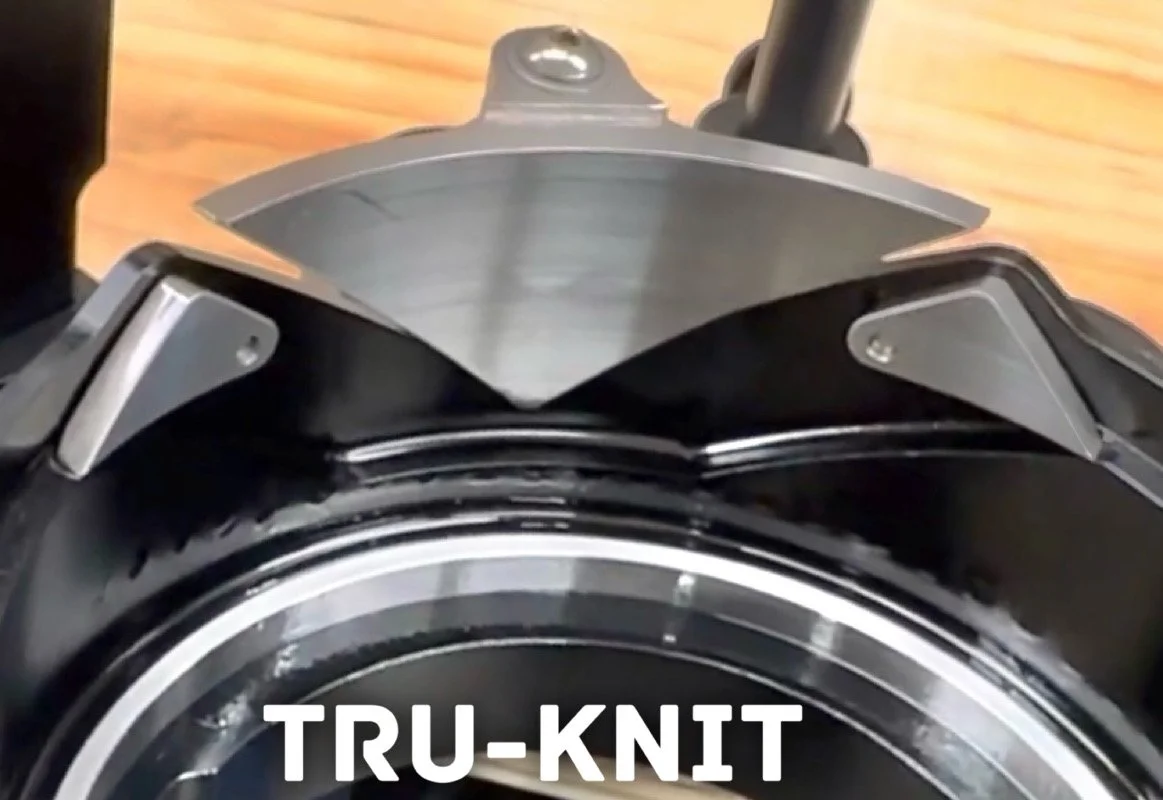

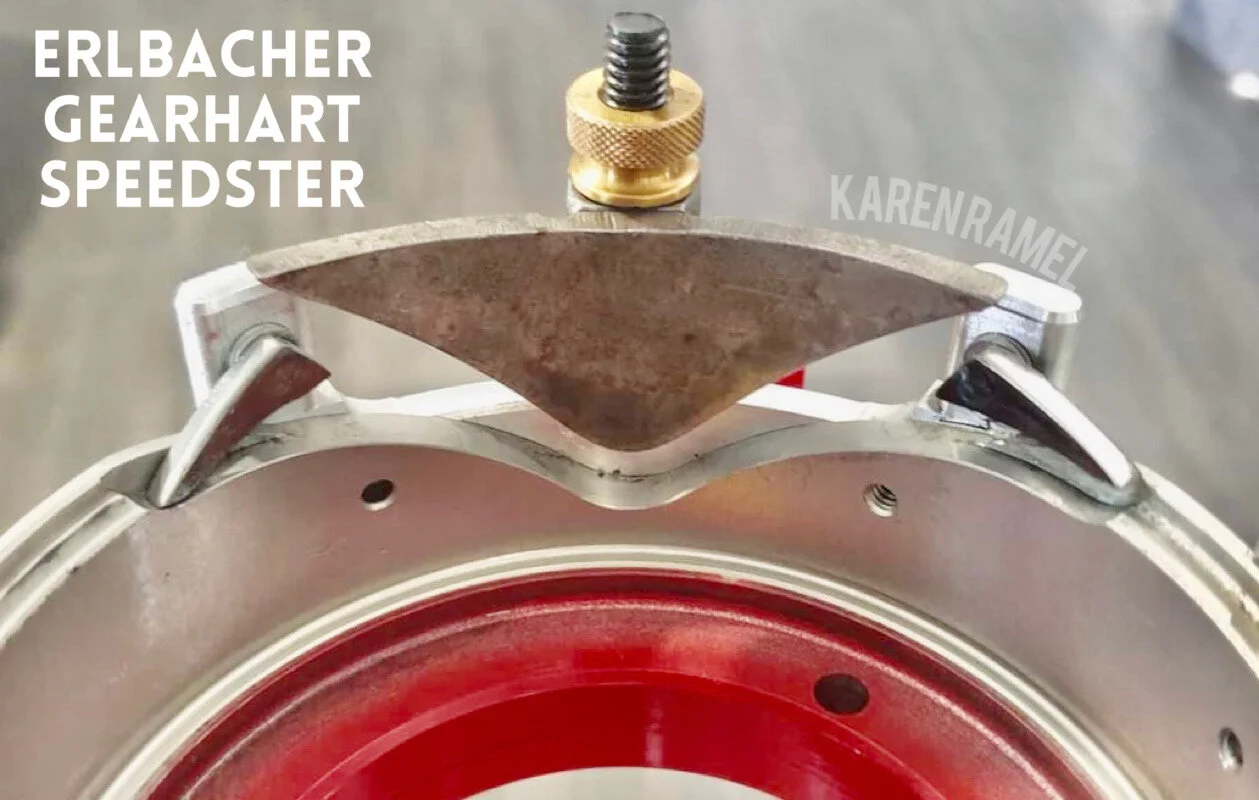

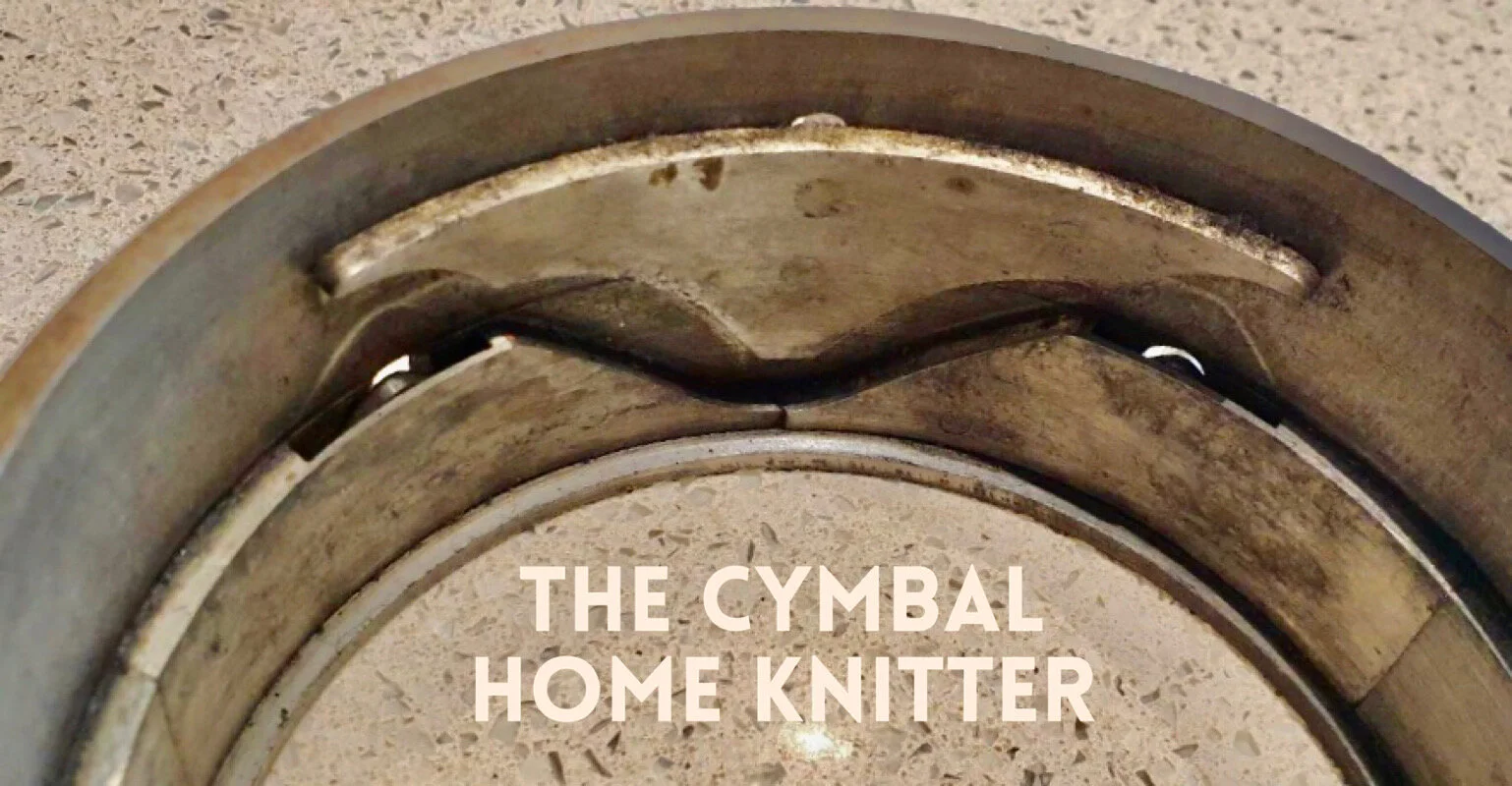

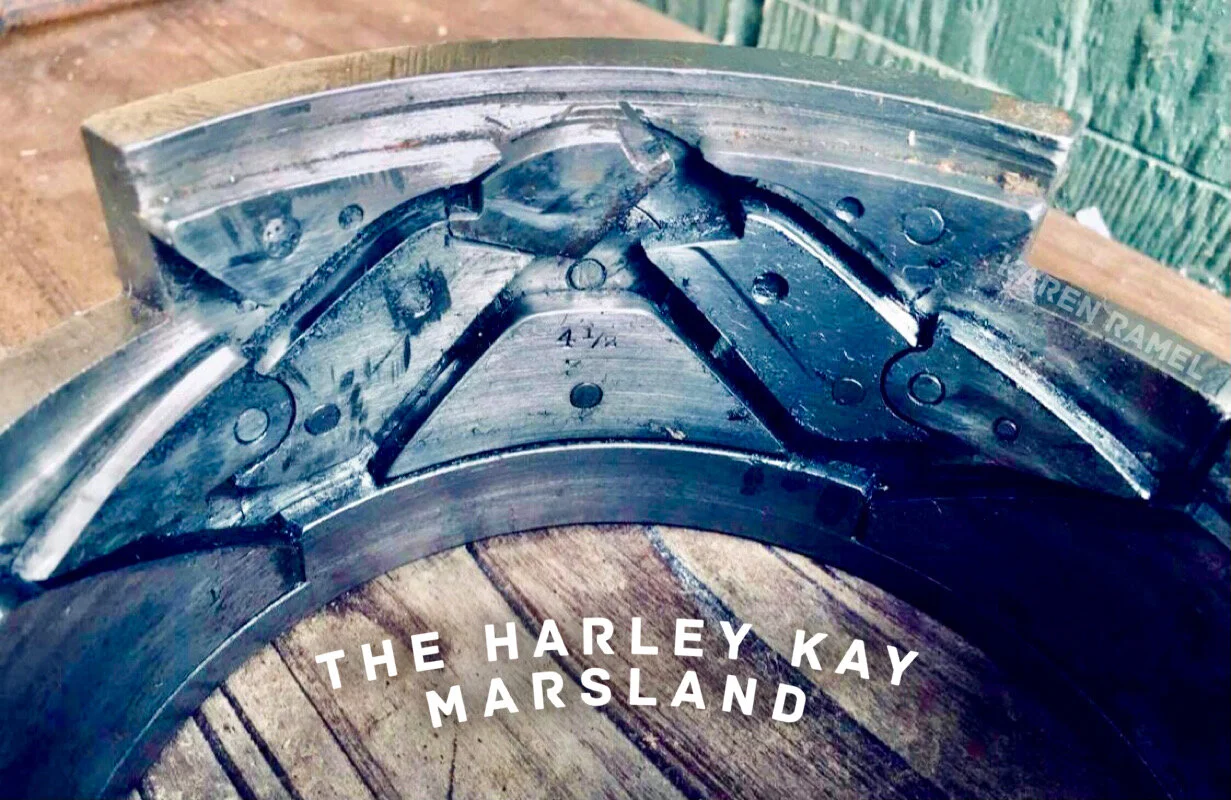

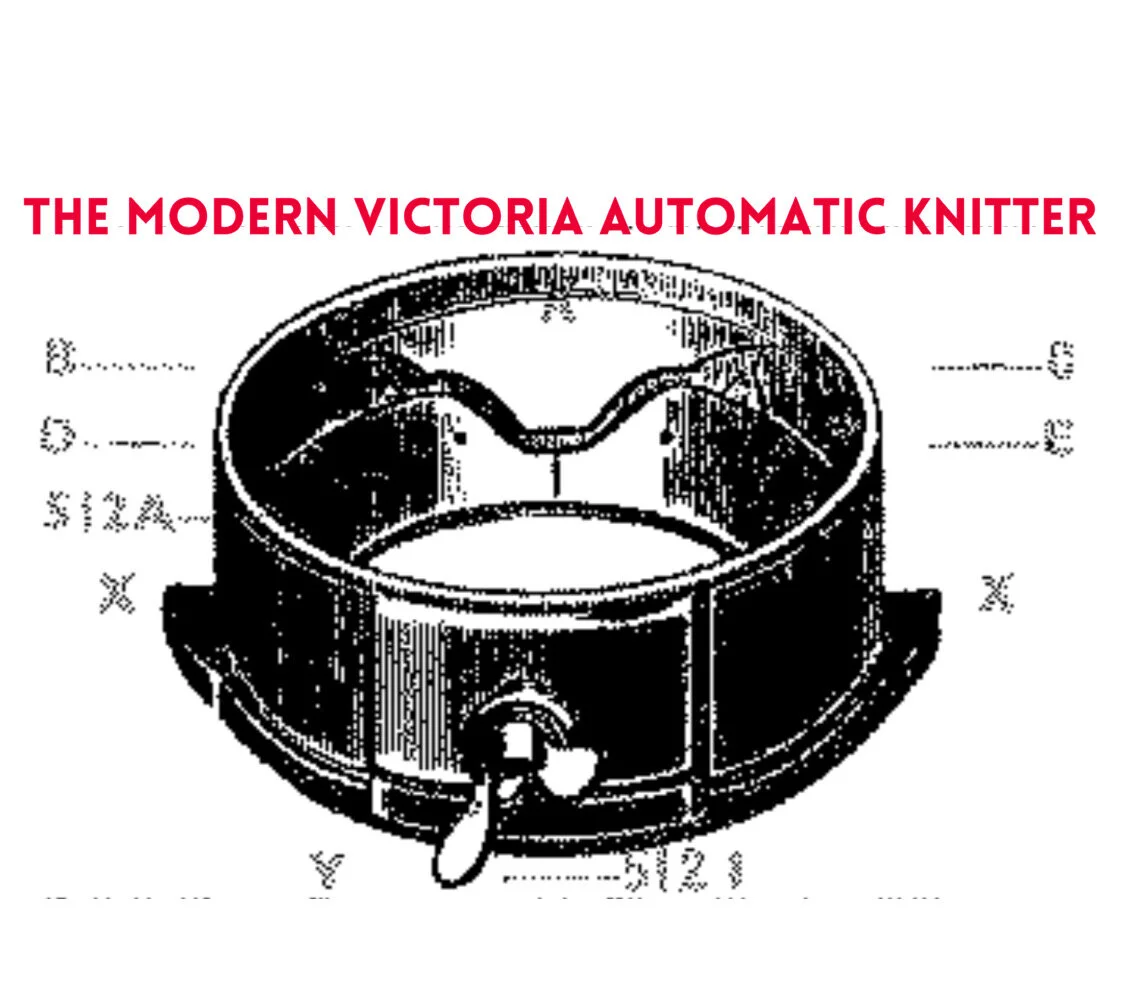

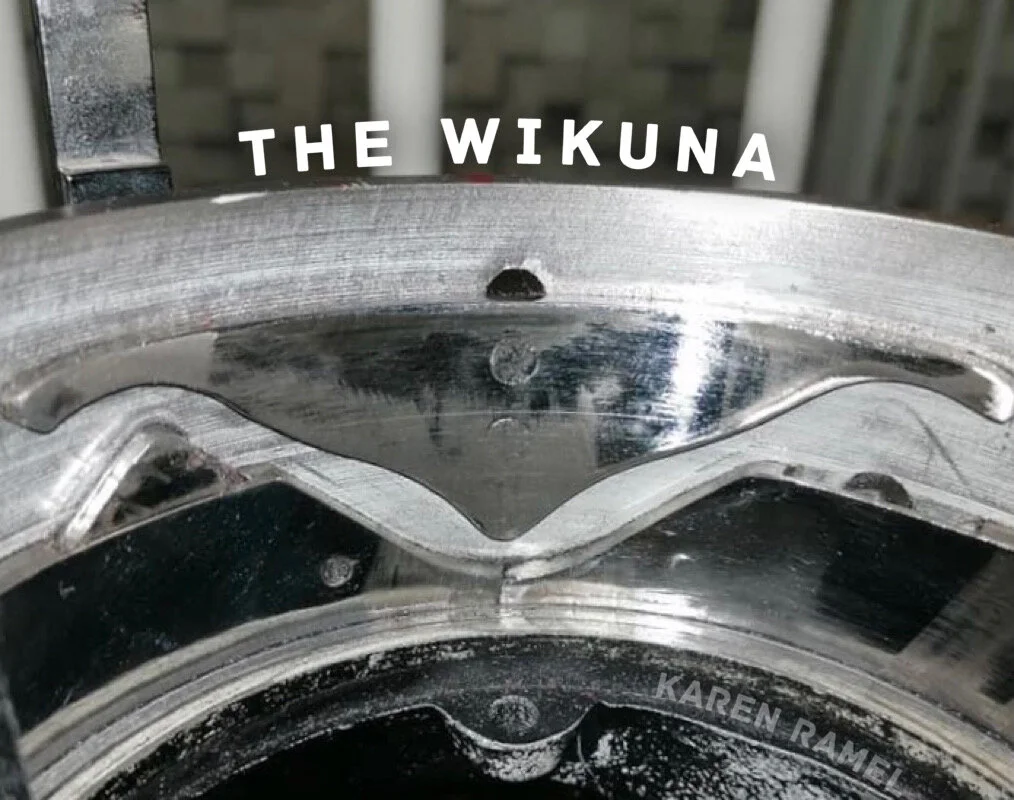

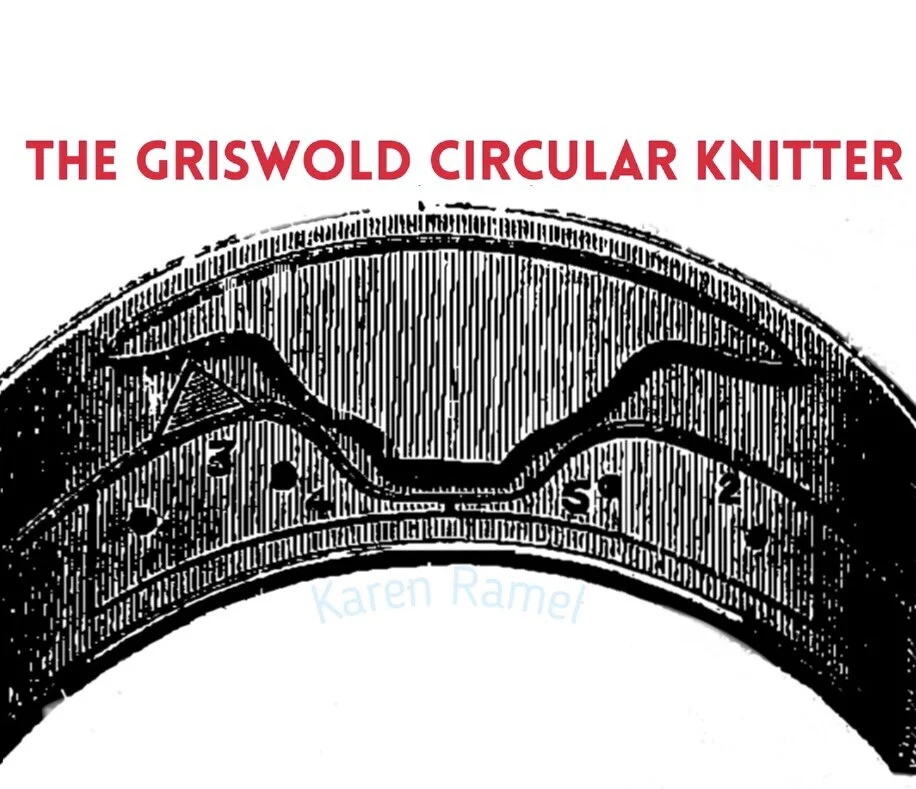

Do you have a CSM not shown in these photos here? We are requesting people to please consider emailing us a photo of the cams with the cylinder removed (same style like those here).
Please email to csmloveinfo@gmail.com with a name of the machine. :) THANK YOU!
Machines are alphabetically listed. Click on each image to view full size.

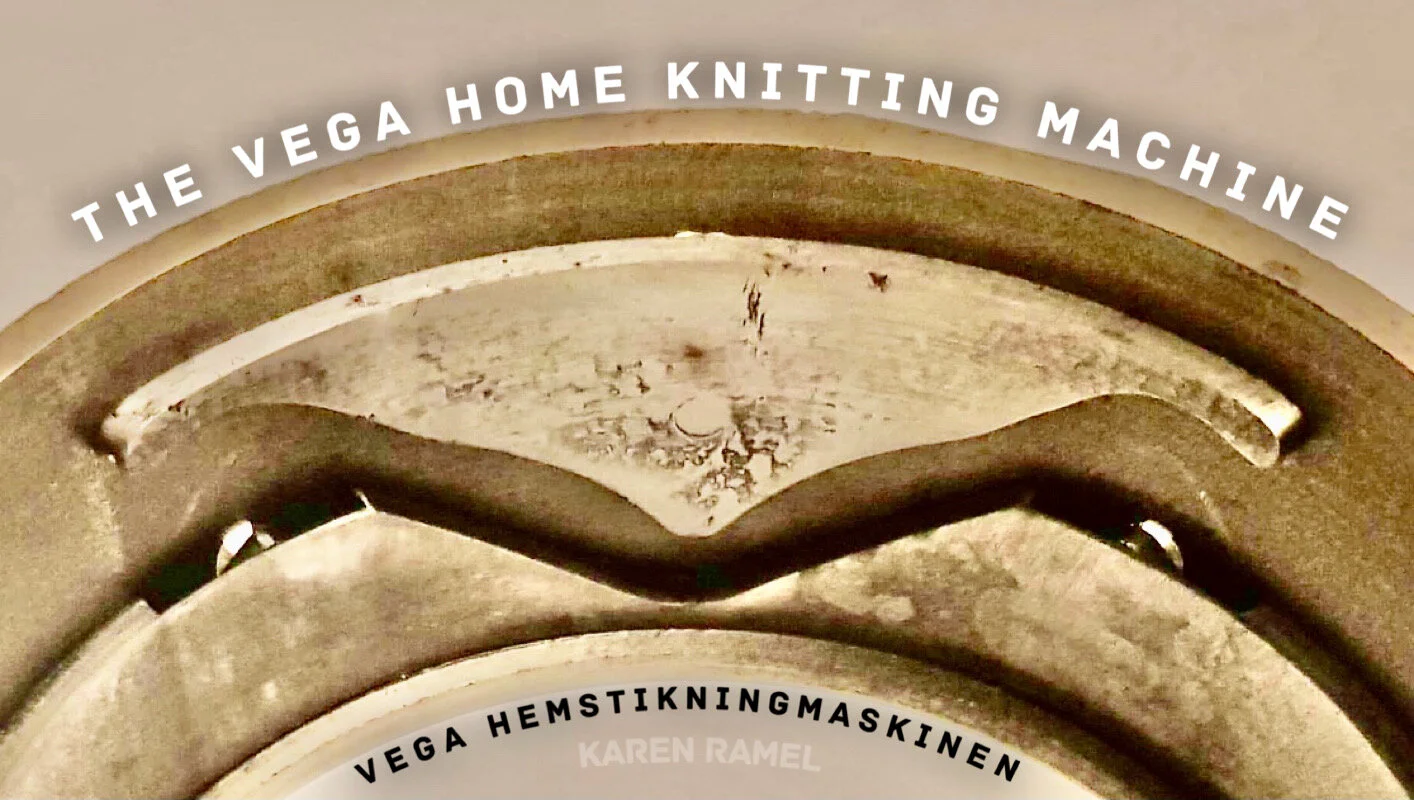

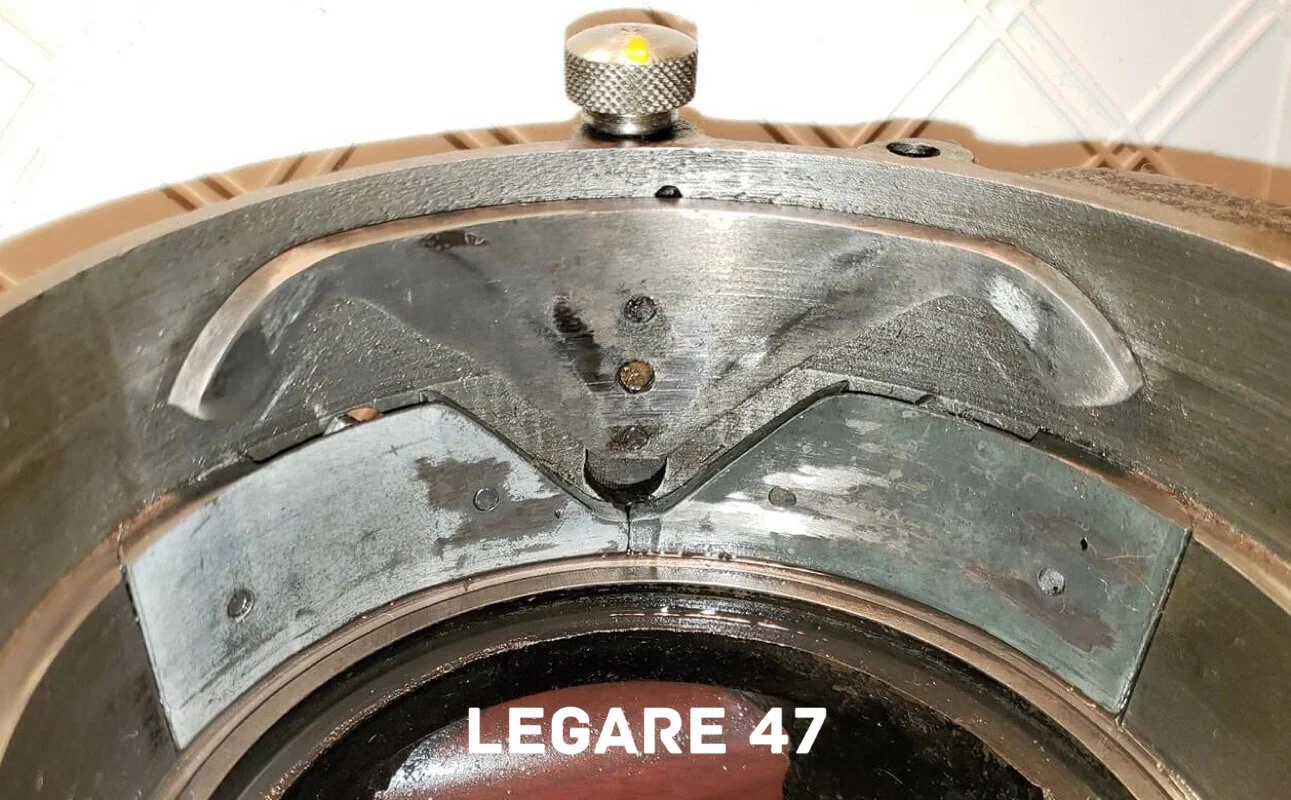

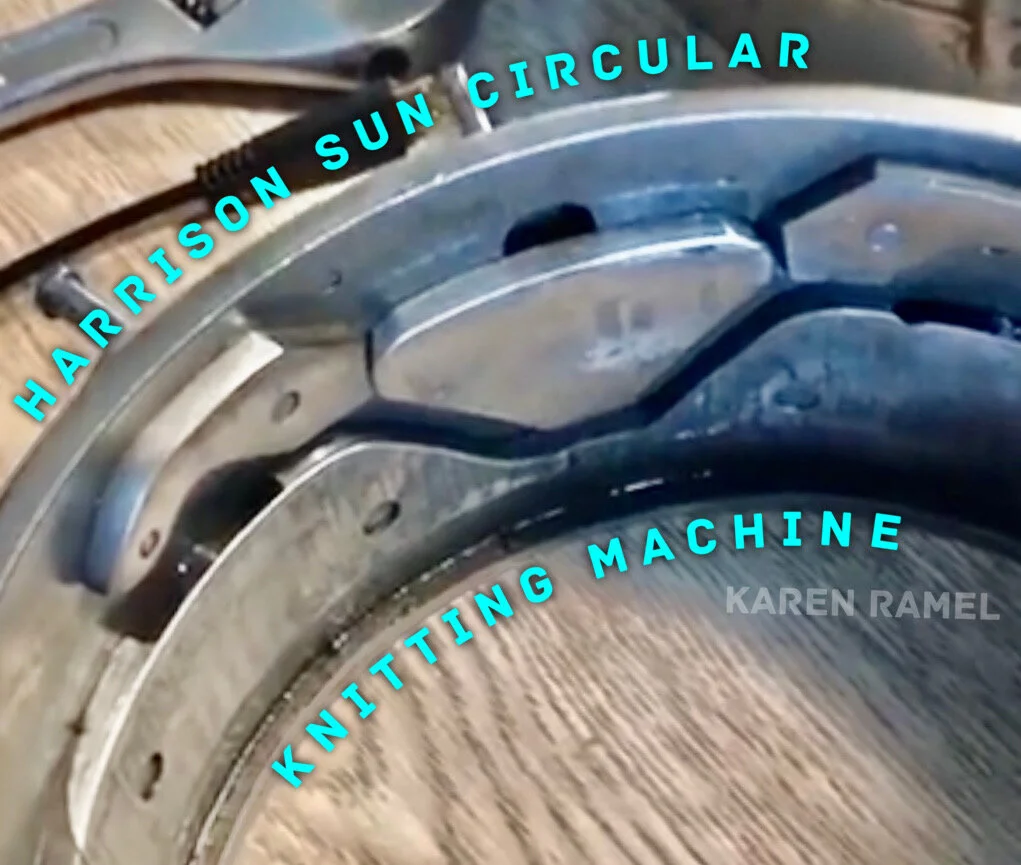

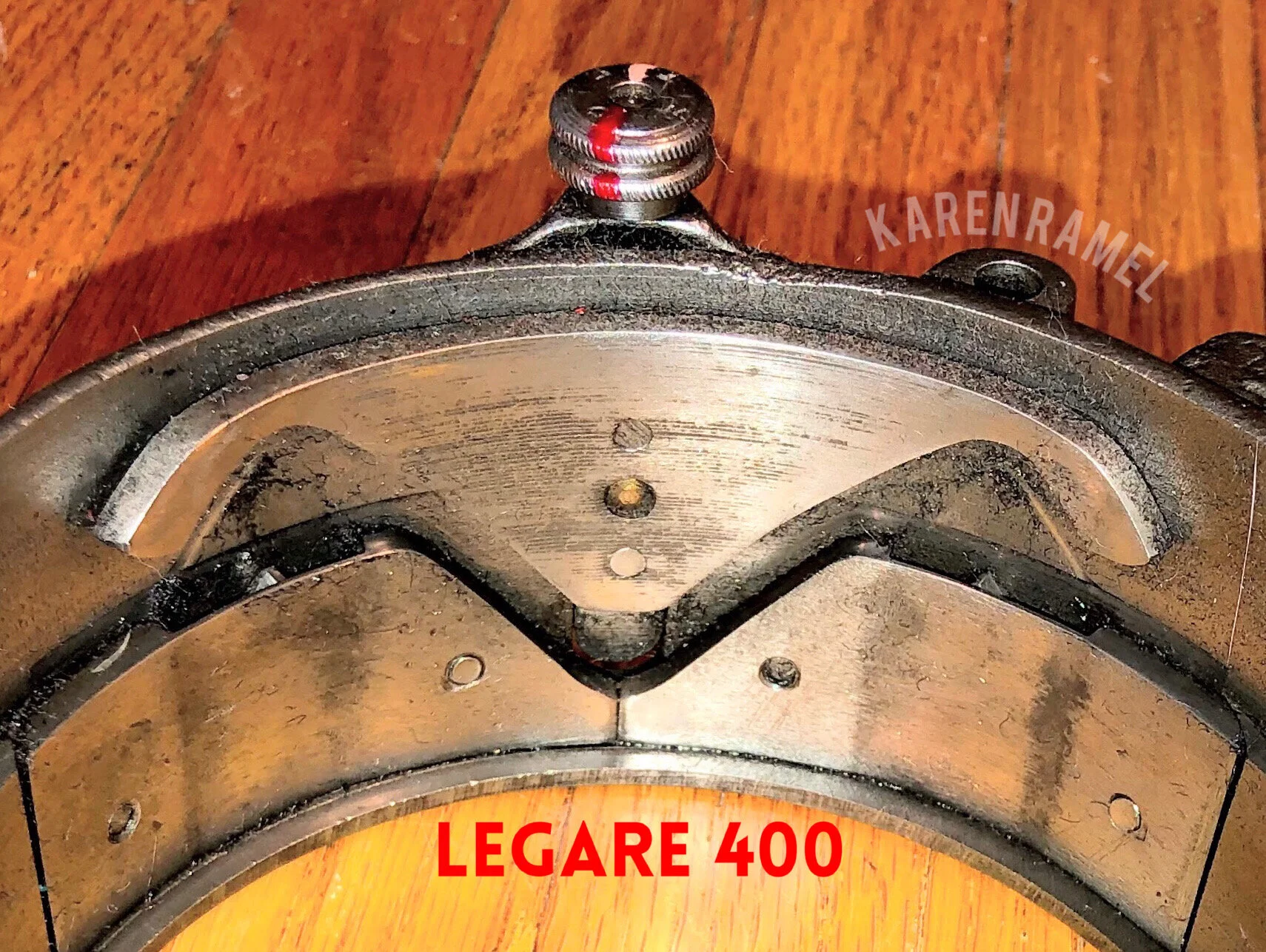

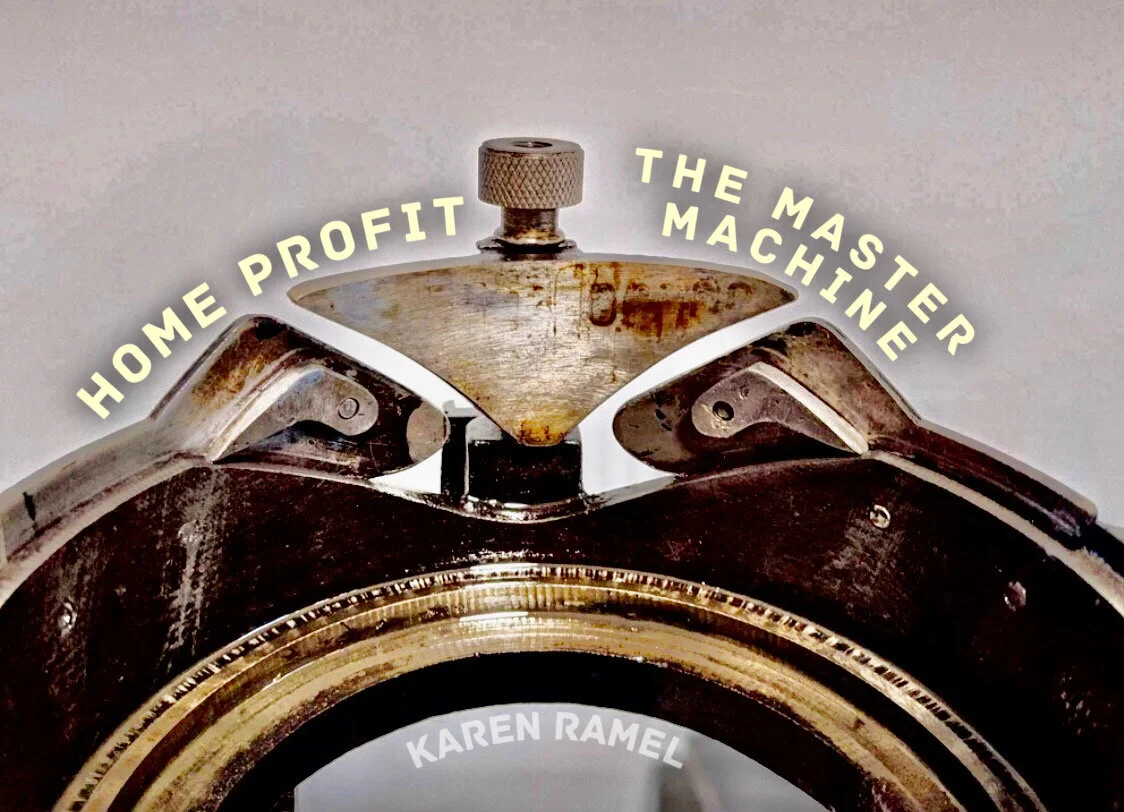

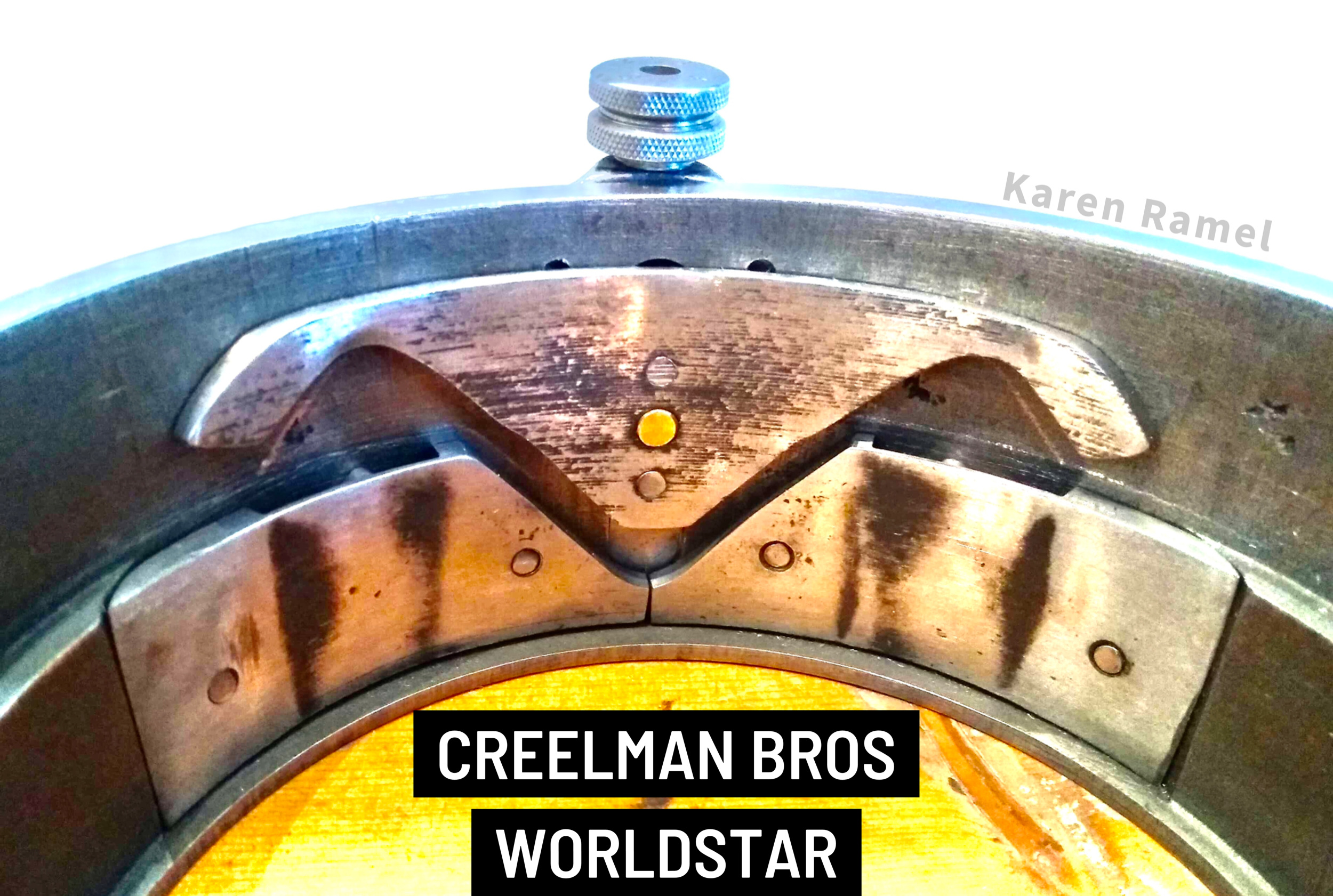

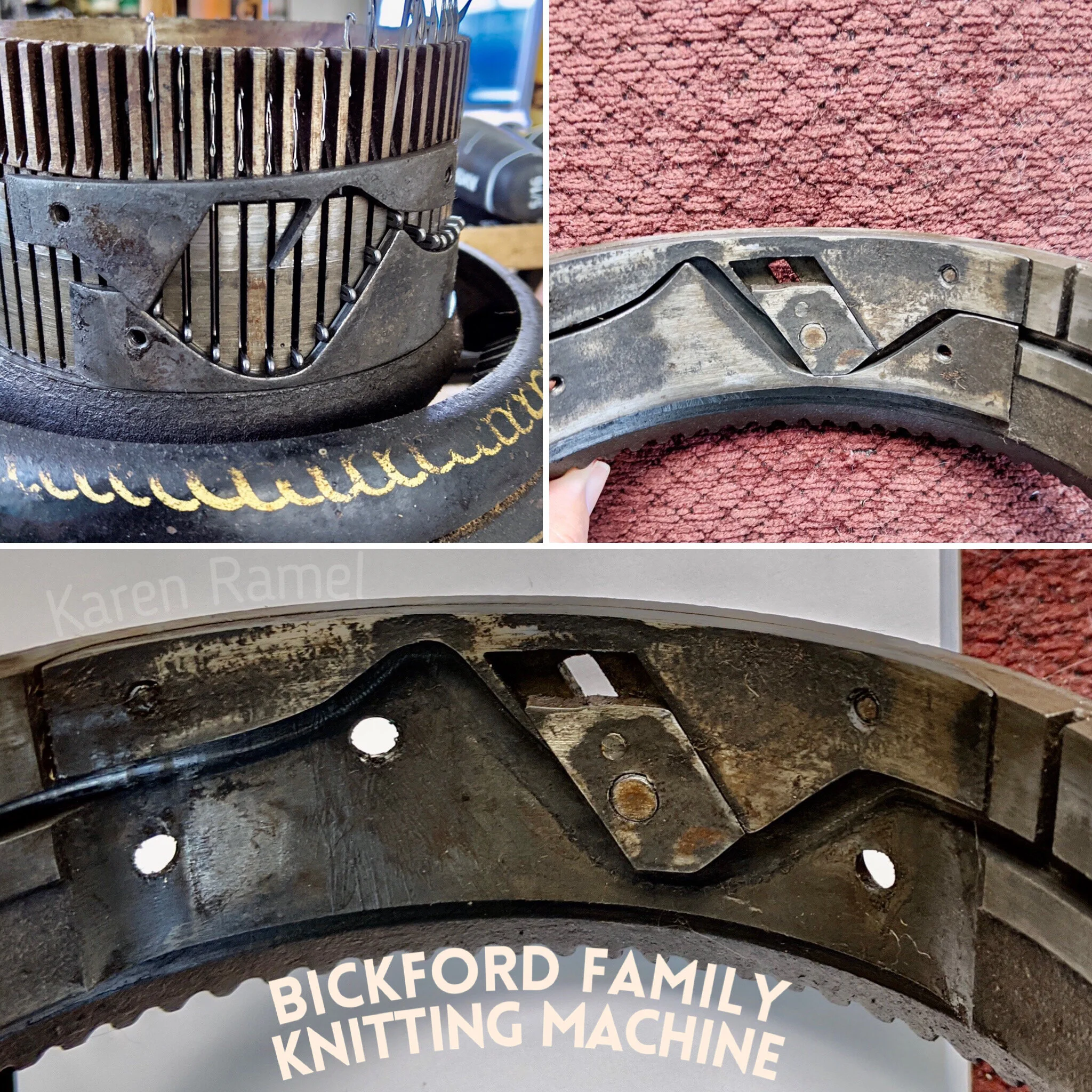

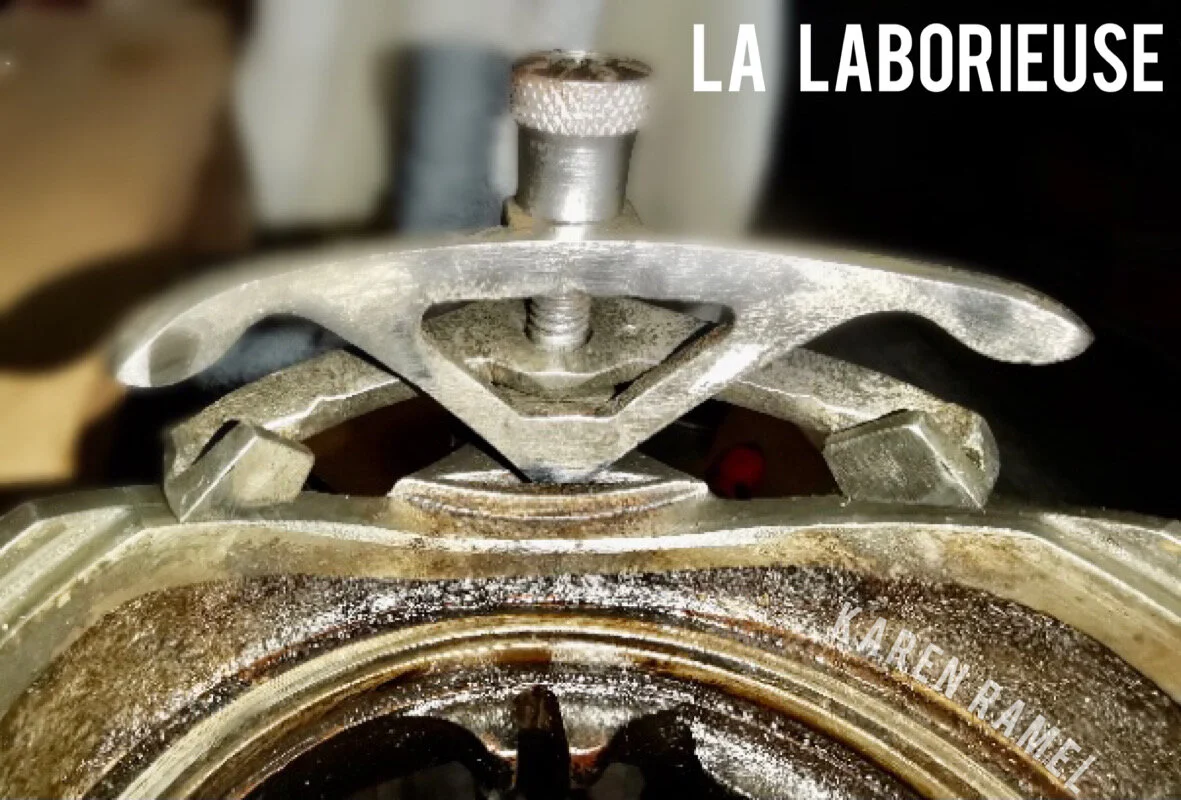

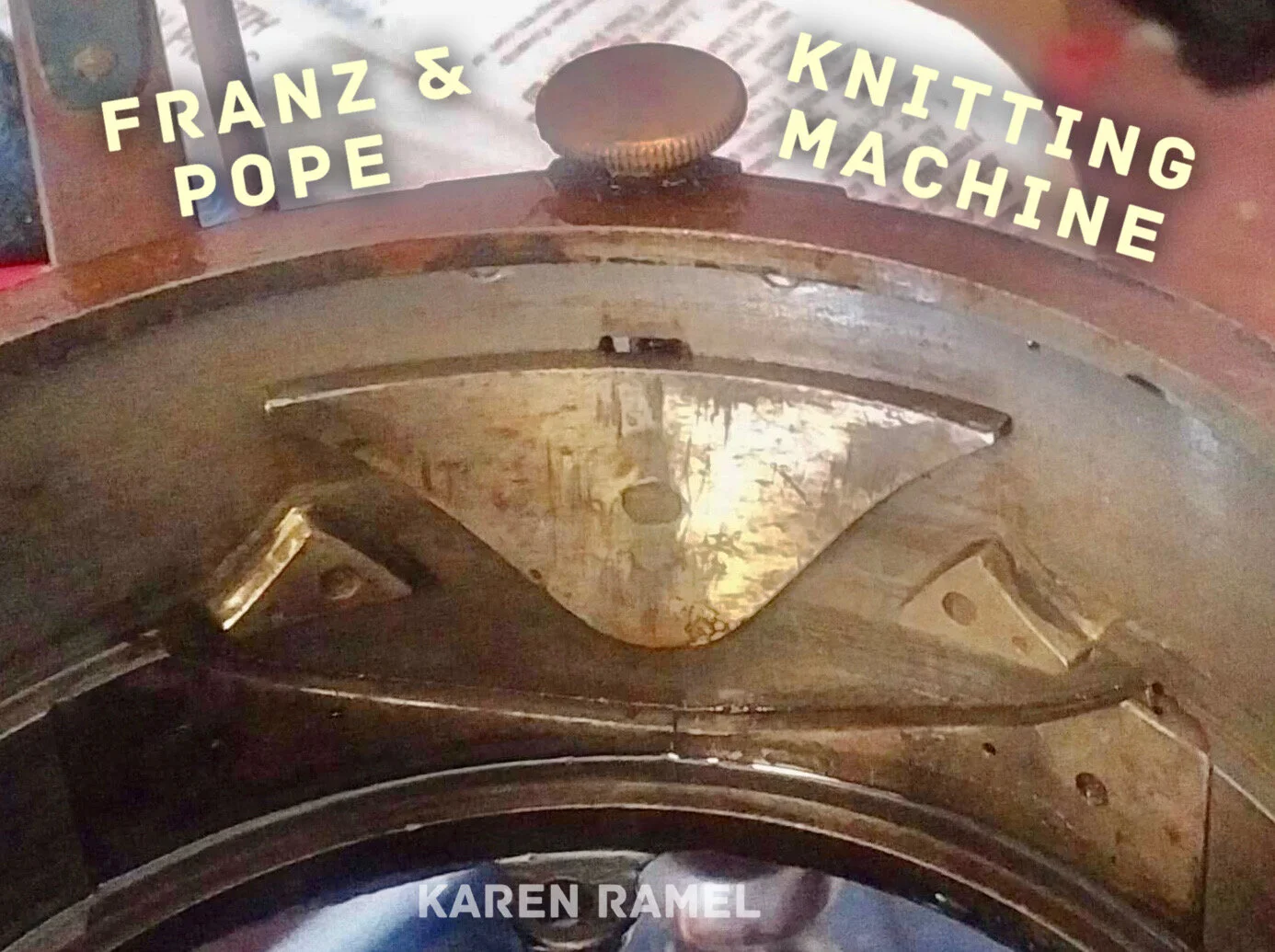

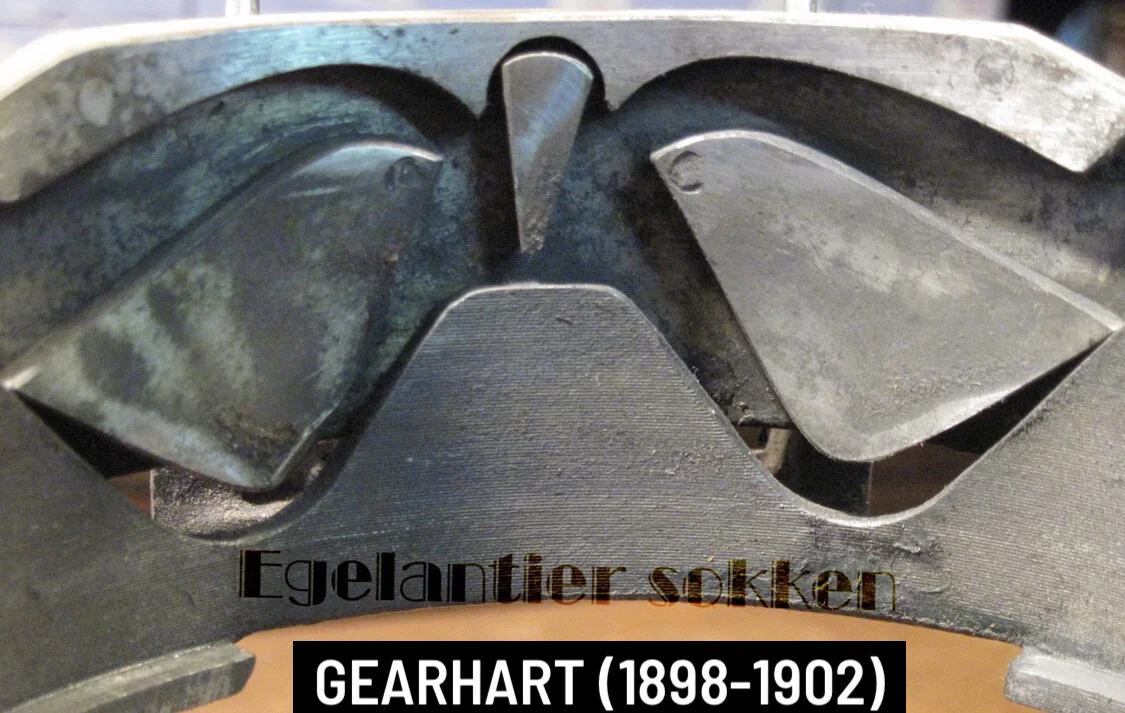

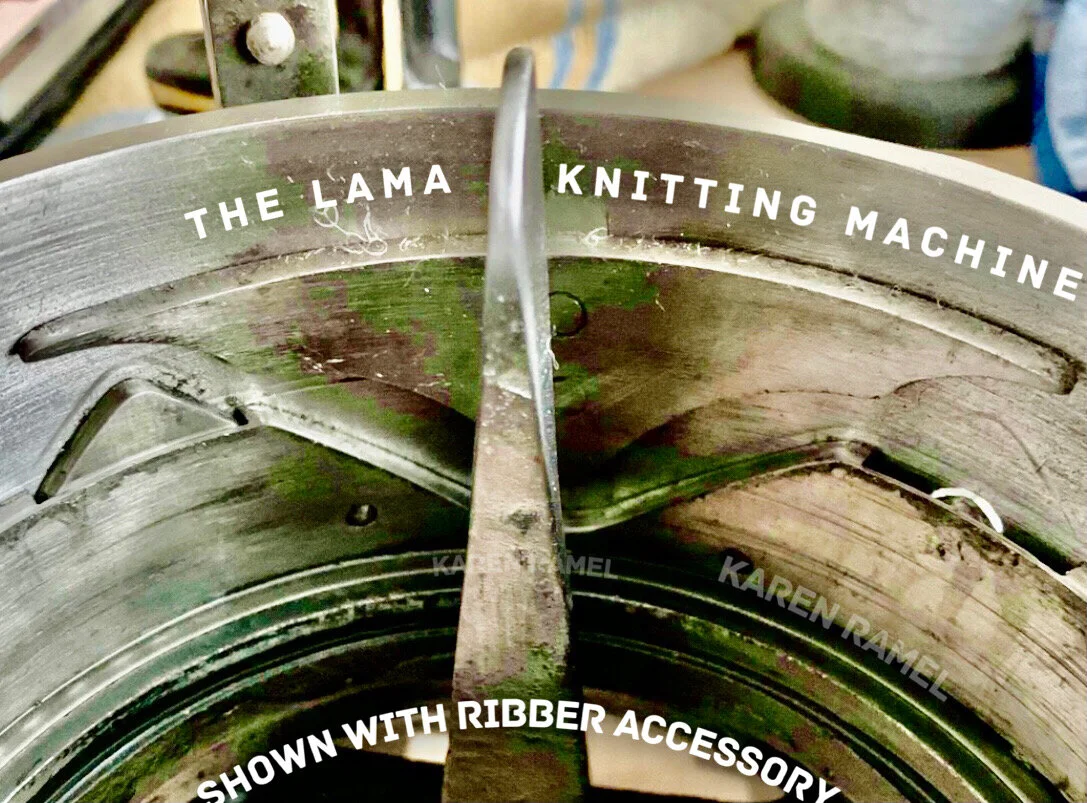

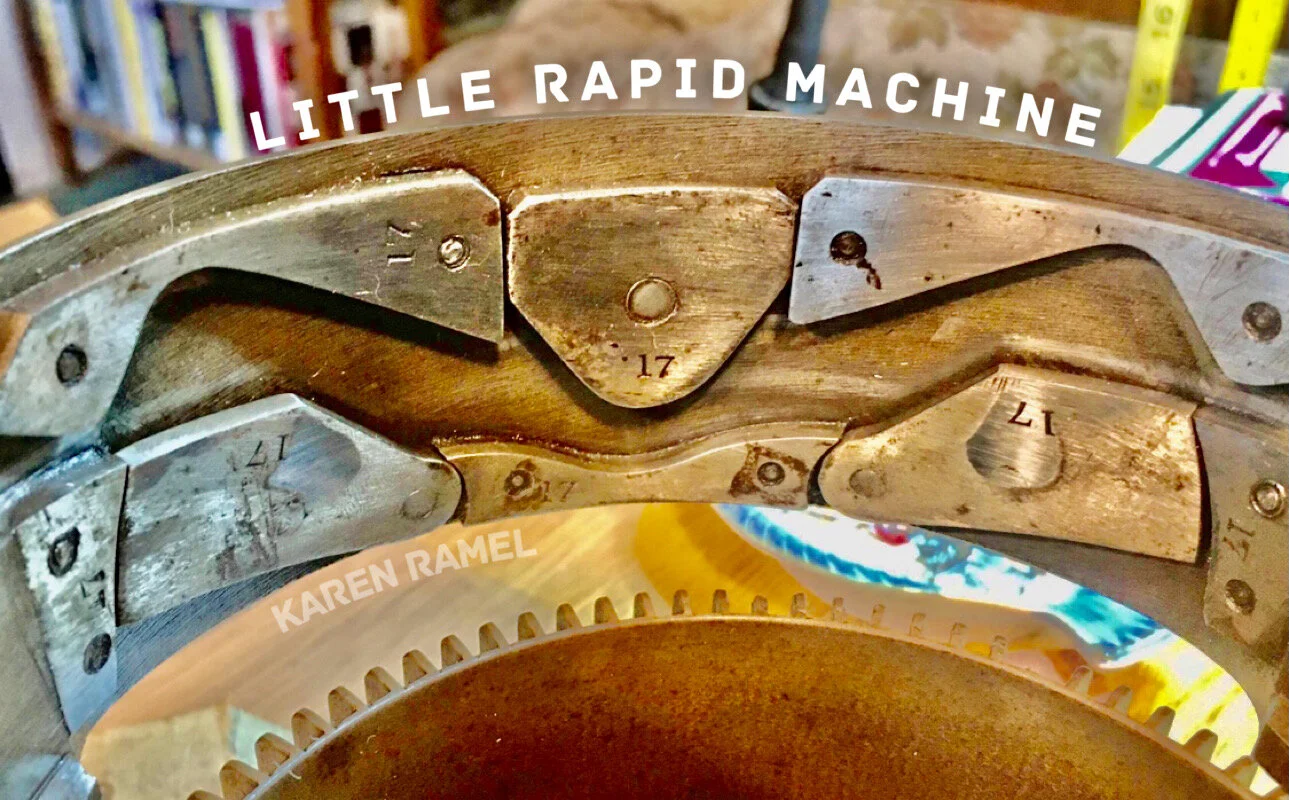

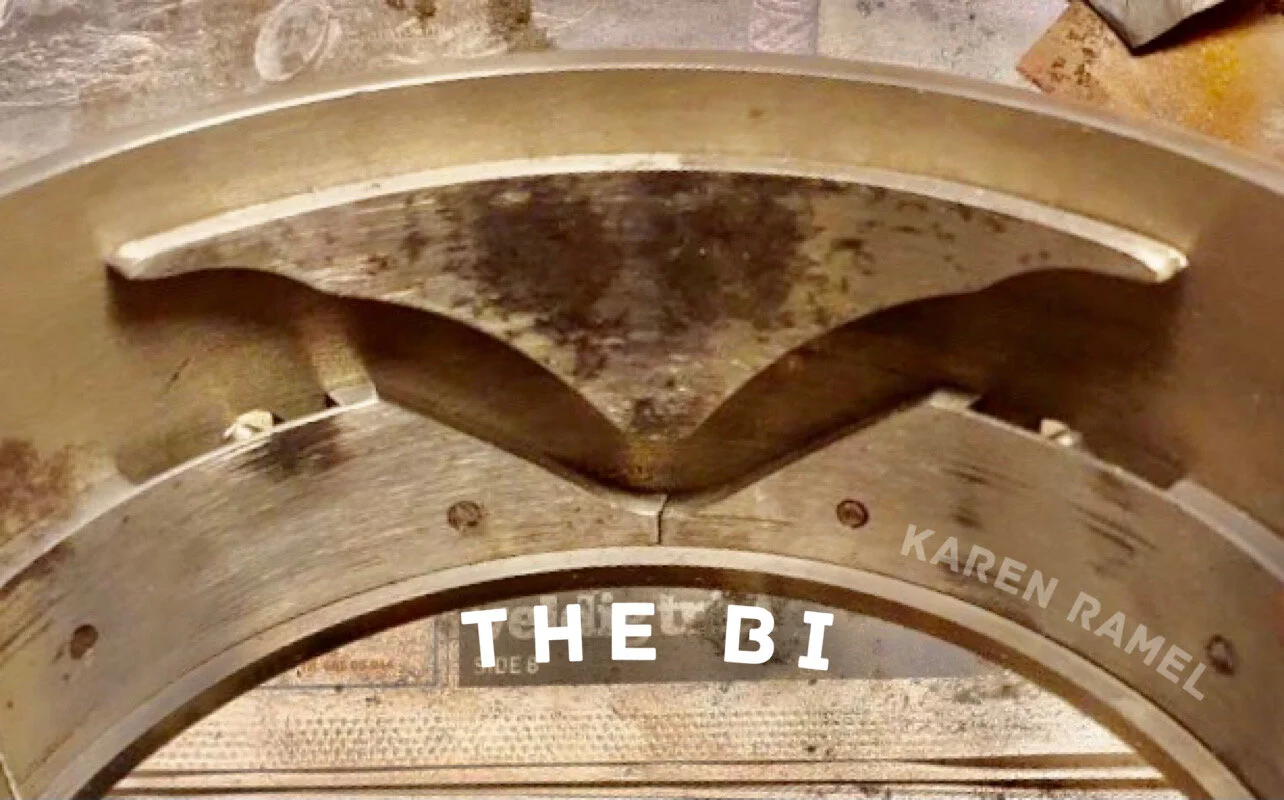

Special thanks to the following awesome people for their contributions: R. Lo Piccolo, Legare 47; A. McCauley, AKMC; E. Sharp, Cymbal Home Knitter; S. P. Chinault (Flipped up photo) & M.E. Dewey, The Harley Kya Marsland Semi-Automatic Cone Dial Hoisery, C. Dunigan, Bickford Family Knitting Machine; S. Holden, Erlbacher Gearhart Speedster; L. Perry, The People’s H.S. (High Speed) Knitting Machine; K. Abbas, The Tuttle Knitting Machine; D. Silas, Frank & Pope Knitting Machine; E. O’Quinn, Home Profit - The Master Machine; M.E. Dewey, Harrison Sun Circular Knitting Machine modified for the Blind; M.E. Dewey, Little Rapid Machine - 1870’s; A. Jensen, The Vega Home Knitting Machine from Favorit Nässjö; J. can Baer, The Lama Knitting Machine (Amerstam); Y. Lowry, The Creelman Money Maker; The Wikuna, K. Van Dommelen; J. Strikker, The Bi; S. Cornille, La Laborieuse, M. Abai; The Ideal Circular Sock Machine (similar to Gustav Nissen); Egelantier Sokken, Steber, Rekord, The Imperia Circular Knitting Machine, La Ruche, Gearhart (1898-1902) (1920-24), Sameuse, Golden Fleece, L’Eclaire, Bickford, La Perfection Bruxelles, Max Geltz (2 images); D. Sundqvist, Creelman Bros - WorldStar; D. Moon, The Griswold Circular Knitter; S. Hogrefe, Dundas, Harrison VENI VIDI VICI; M. Beasy, Behive, Caducque Rapide, Hemstickningsaktiebolaget Viktoria (Home Knitting Company Viktoria); S. Hose, Gustav Nissen Schnellstricker mit Flachstrickeinrichtung (quick knitter with flat device); L. Swales, Branson Eclipse; The Maker CSM by (Jojo) S. Kienhöfer; S. Richardson, Regina.
Seeking same style photos for all unlisted machines including (but not limited to):
Ainslie Knitting Machine, American Family Knitting Machine (based on Bickford’s patents), Are, Buoker, Cooperative Circular Knitting Machine, Erlbacher Gearhart ERL, French Travailleurs Reunis Circular Knitting Machine, Fricke Auto Knitter Knitting Machine, JB Aikens, Klondyke Knitting Machine, LT150 (Lamb), London Knitting Machine Company Duplex Knitting Machine, Model 4 Circular Knitting Machine, New Improved Canadian Automatic, The Schnell-stricker (by Gustav Nissen - similar to Cymbal/Imperial), Swedish Viktoria Circular Knitting Machine, Verdun Semi Automatic.
Wonderful museum - https://www.frameworkknittersmuseum.org.uk/
A short history of machine knitting
A cursory search for patents on circular sock knitting machines or improvements to them using Google turns up the following:
Lamb - 1863 | Franz/Pope - 1869 | Howe-1870 | Creelman - 1878 |
Knitting frames: late 1500s | Flat or V bed knitting machines: early 1800s
Latch needle patented 1849 in both UK and USA.
CSM PARTS AND THEIR NAMES…
A rose by any other name would smell as sweet.
There are MANY different circular sock machines in the world and even though generically they have the same parts to work similar functions, the naming of their parts can differ greatly.
For example.

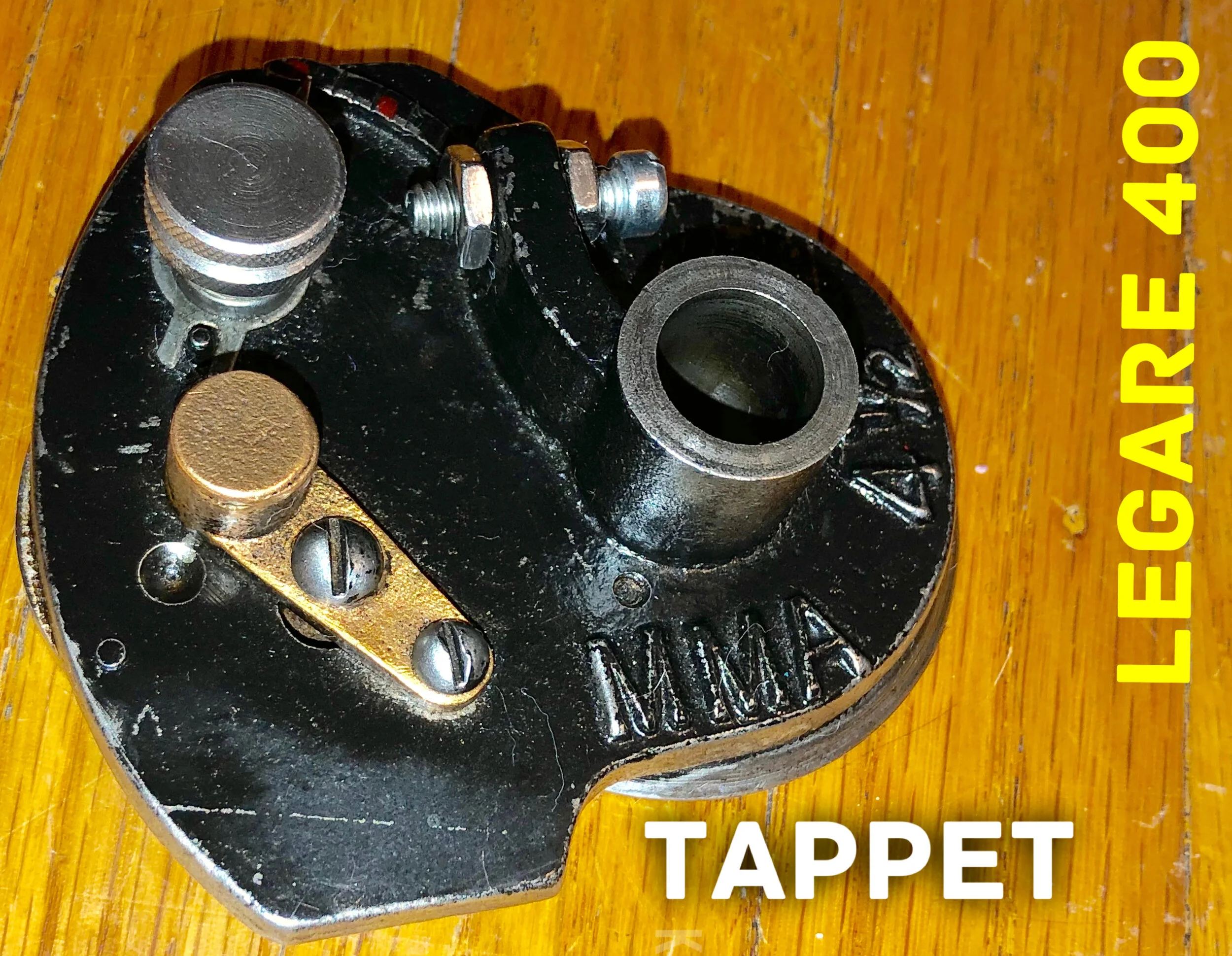

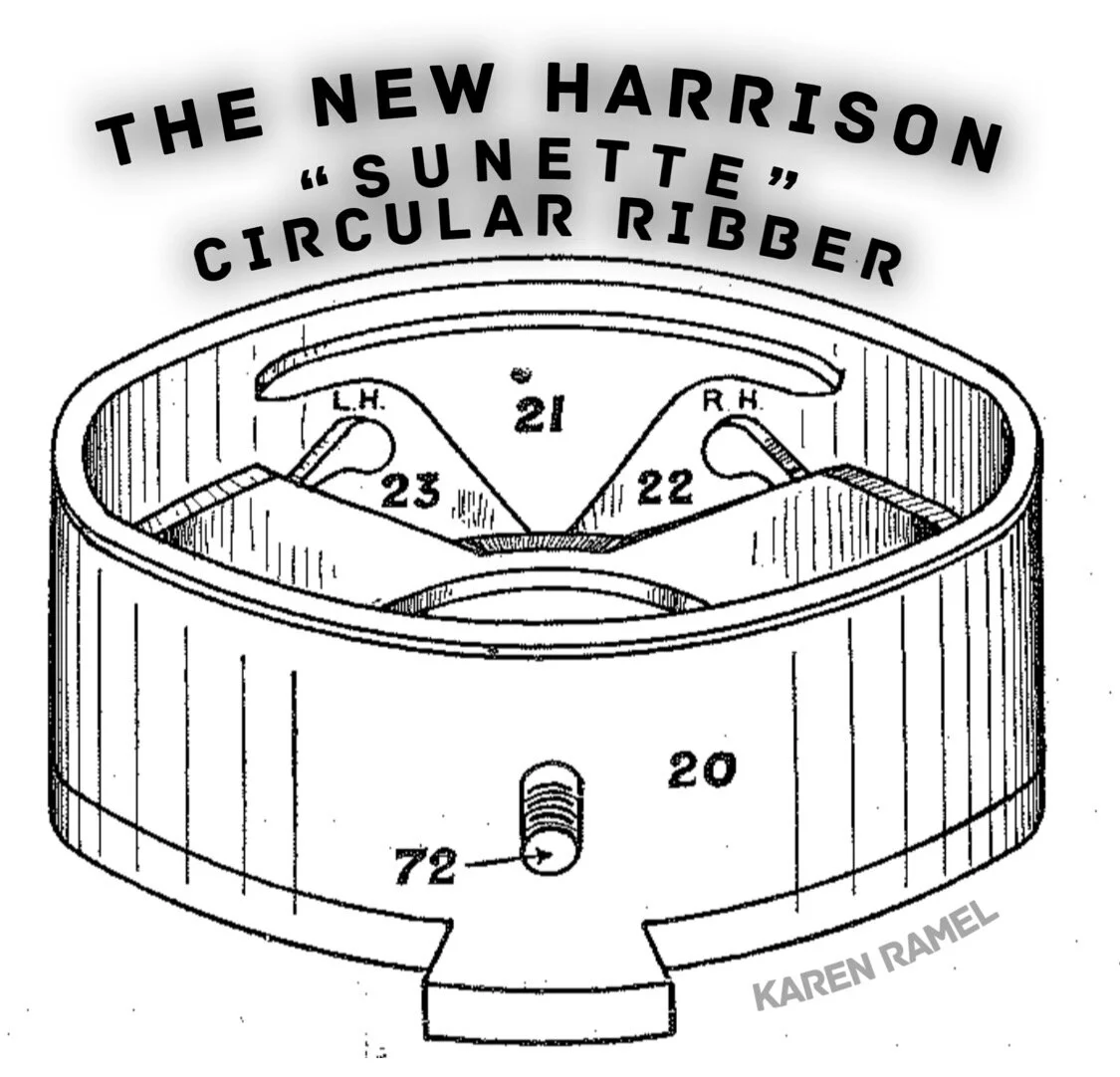

The Harrison Sun CSM names the “Ribber Tappet” also the “Ribber Cam Plate” or “Welting Cam Plate”. Ref Page 8
Selvage is also referred to as the Welt - The welt is very important because it is the starting point of the sock and provides an edge that will not ravel. It is important to fit, and it may be seen, depending on the sock design.
This page is a work in progress.
Feel other suppliers should be listed? Please email me with their complete with a brief summary of items and info for website submission consideration.
3D Printed CSMs

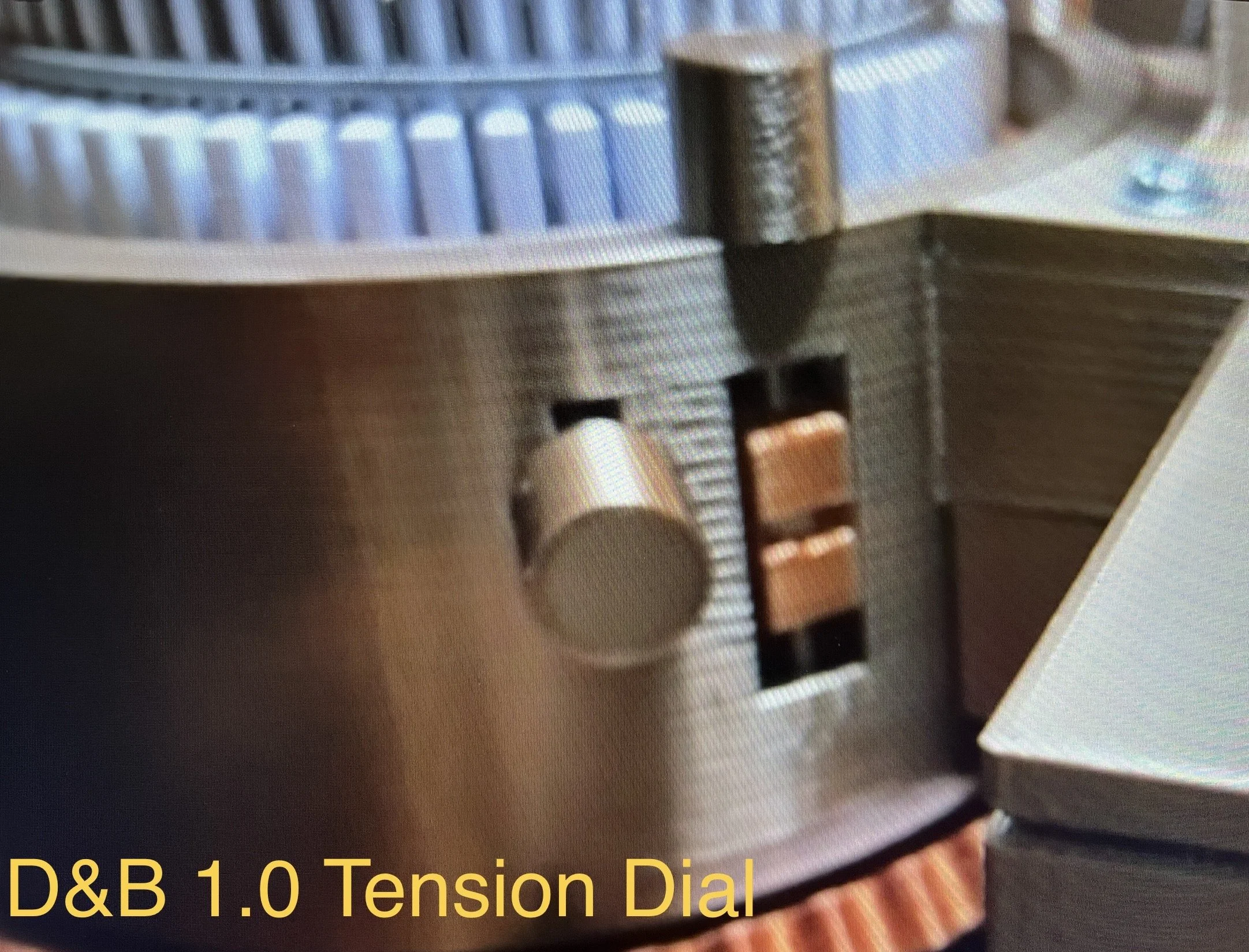

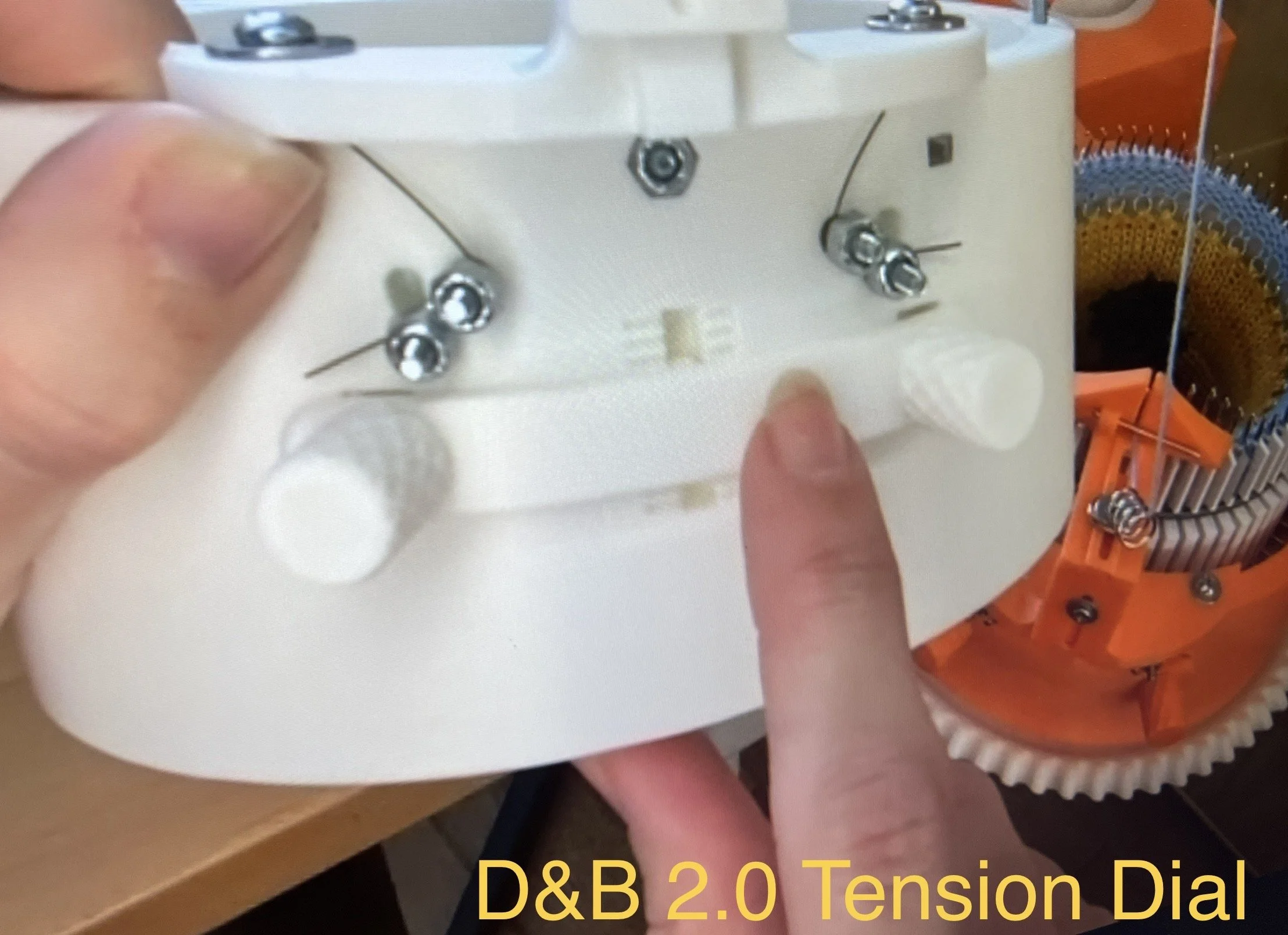

How tension is adjusted
For more images of these machines see New CSMs under the main page “Supplies” menu
